Máy tính công nghiệp Advantech ARK-3531-00A2 | i3-9100TE | 8GB RAM | SSD 512GB

Giá: 59,000,000 VNĐ

Thông tin sản phẩm

Mã hàng: ARK-3531-00A2
Bảo hành: 12 Tháng
Hãng sản xuất: Advantech
Xuất xứ: China

Mô tả sản phẩm

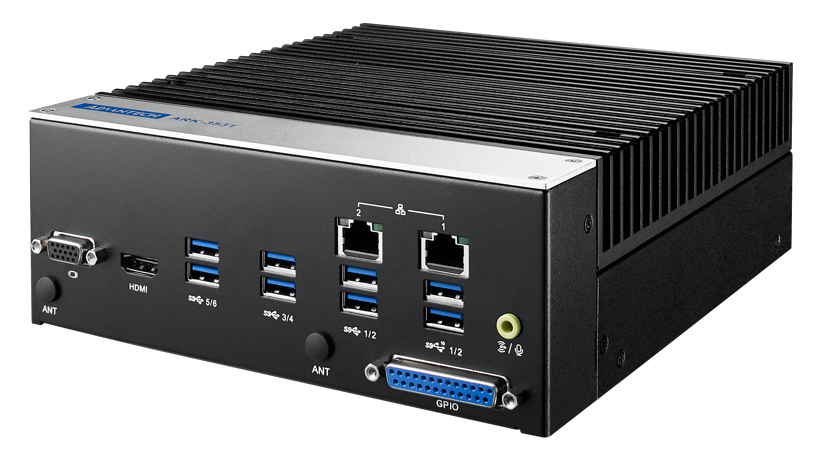

ARK-3531-00A2: Intel® 9th Gen / Core™ i3/i5/i7/i9 LGA1151 Fanless Box PC
SYSTEM CONSISTING OF THE FOLLOWING:
- PROCESSOR: Intel® Core™ i3-9100TE Processor 6M Cache, up to 3.20 GHz
- MEMORY: 8GB (4GBX2) DDR4 3200 4GB SODIMM INNODISK
- STORAGE: 512GB 2.5" SATA SSD 3TE7 INNODISK
- POWER SUPPLY: AC to DC adapter, DC 24V 230W, -20 ~ 60° C
- OS: Windows 10 IoT (Trial version)
- I/O:
Serial Port 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper)
USB 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A)
GPIO 16bit DIO

Thêm vào giỏ hàng

ARK-3531-00A2: Intel® 9th Gen / Core™ i3/i5/i7/i9 LGA1151 Fanless Box PC SYSTEM CONSISTING OF THE FOLLOWING: - PROCESSOR: Intel® Core™ i3-9100TE Processor 6M Cache, up to 3.20 GHz - MEMORY: 8GB (4GBX2) DDR4 3200 4GB SODIMM INNODISK - STORAGE: 512GB 2.5" SATA SSD 3TE7 INNODISK - POWER SUPPLY: AC to DC adapter, DC 24V 230W, -20 ~ 60° C - OS: Windows 10 IoT (Trial version) - I/O: Serial Port 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) USB 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) GPIO 16bit DIO

Processor
CPU
  • i7-9700TE/ i5-9500TE/ i3-9100TE/ G5400T /G4900T
Core Number
  • 8/6/4/2/2
L3 Cache
  • 12MB /9MB /6MB /4MB /2MB
Frequency
  • 1.8GHz-3.8GHz/ 2.2GHz-3.6GHz /2.2GHz-3.2GHz/ 3.1GHz /2.9GHz
CPU TDP
  • 35 W
Chipset
  • Intel Q370
BIOS
  • AMI UEFI 128 Mbit
Memory
Technology
  • DDR4 2133MHz
Max. Capacity
  • 64 GB
Socket
  • 2 x 260-pin SO-DIMM
ECC Support
  • No
Graphics
Chipset
  • Intel® HD Graphics 630
Graphic Engine
  • Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
HDMI
  • 1
VGA
  • 1
Flexible Display (by TPN project)
  • HDMI+HDMI,VGA+DP,HDMI+DP
Audio
Main System
  • Realtek ALC888S, High Definition Audio, Line-out, Mic-in
Ethernet
Controller
  • 2
LAN1
  • 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2
  • 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
I/O Interface
Serial Port
  • 4 x RS232, 4 x RS232/422/485
Serial
  • 8
USB Interface
  • 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A)
USB3.0
  • 8
GPIO
  • 16-bit
Expansion
Mini PCI Express
  • 1
Mini PCIe #1
  • 1 x Full-size MiniPCIe (support mSATA and SIM holder, optional AMO-I026 to support m.2 B+M key 2280 kit)
M.2
  • 1
Others
Watchdog timer
  • 255 levels timer interval, setup by software
TPM
  • By Project
Storage
mSATA
  • 1 x full size mSATA socket (share with miniPCIe)
2.5" HDD/SSD
  • 2 x 2.5" SATAIII Drive bay (compatible with 15mm height)
Software Support
Microsoft Windows
  • Windows 10
Operating System
Ubuntu
  • V
Power
Power Type
  • AT / ATX
Input Voltage
  • 9 ~ 36 VDC
Power Adaptor
  • AC to DC, 150W (Optional)
Power Consumption
  • Typical 16.8W, Max 34.8W (CPU/Memory only)
Mechanical
Construction
  • Aluminum housing
Mounting
  • Desk mounting
Dimensions
  • 200 x 75 x 215 mm
Weight
  • 3.2 Kg
Environment
Operational Temperature
  • 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature
  • -40 ~ 85° C
Relative Humidity
  • 95% @ 40° C (non-condensing)
Vibration During Operation
  • With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation
  • With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
Certification
EMC
  • CE/FCC Class B, CCC, BSMI
Safety Certifications
