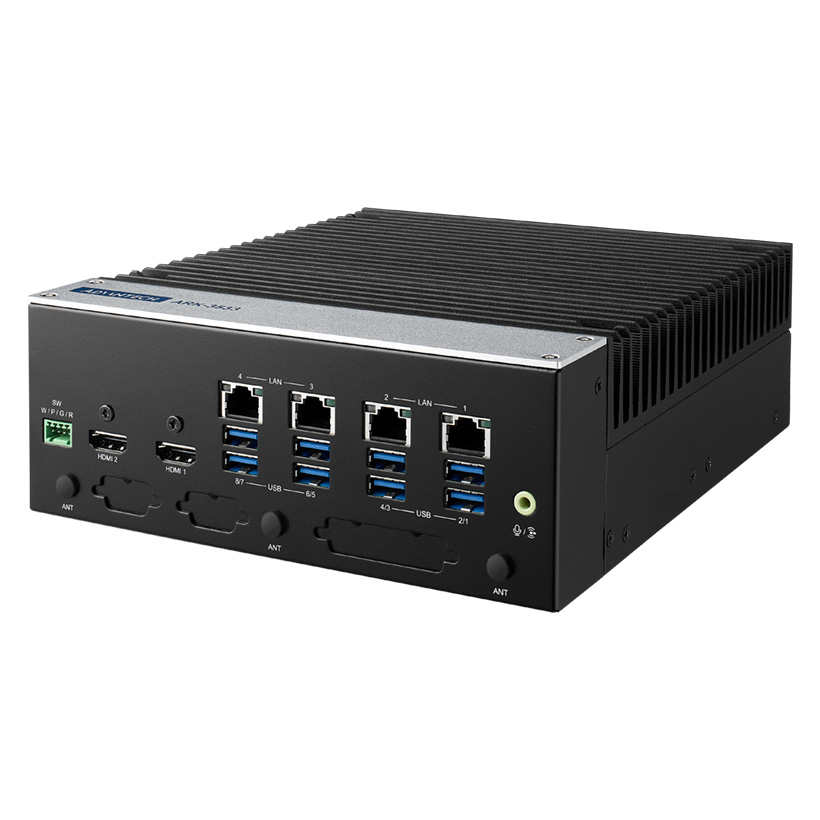

Máy tính công nghiệp Advantech ARK-3533-00A1 i3-12100TE | 8GB | SSD 128GB

Giá: 58,900,000 VNĐ

Thông tin sản phẩm

Mã hàng: ARK-3533-00A1
Bảo hành: 12 Tháng
Hãng sản xuất: Advantech
Xuất xứ: China

Mô tả sản phẩm

ARK-3533-00A1: Intel® 12th/13th/14th Gen Core™ i3/i5/i7/i9 LGA1700 Expansion FanlessBox PC
- PROCESSOR: CORE I3 2.1G 12M 4C 1700P I3-12100TE
- MEMORY: 8GB SO-DIMM DDR5
- STORAGE: 128GB 2.5" SATA SSD (Industrial, Standard
Grade)
- ADAPTER: AC to DC adapter
- AC POWER CORD
- OS: Windows 10/11 (Trial version)
- I/O:
Serial Port: 4 x RS-232/422/485 port with auto flow control, 4 x RS-232
USB 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0

Thêm vào giỏ hàng

ARK-3533-00A1: Intel® 12th/13th/14th Gen Core™ i3/i5/i7/i9 LGA1700 Expansion FanlessBox PC - PROCESSOR: CORE I3 2.1G 12M 4C 1700P I3-12100TE - MEMORY: 8GB SO-DIMM DDR5 - STORAGE: 128GB 2.5" SATA SSD (Industrial, Standard Grade) - ADAPTER: AC to DC adapter - AC POWER CORD - OS: Windows 10/11 (Trial version) - I/O: Serial Port: 4 x RS-232/422/485 port with auto flow control, 4 x RS-232 USB 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0

Processor
CPU
  • Intel® 12/13/14th Gen Core™ I Processor
  • Intel® 12/13/14th Gen Core™ I Processor
Frequency
  • 1.8GHz-3.8GHz/ 2.2GHz-3.6GHz /2.2GHz-3.2GHz/ 3.1GHz /2.9GHz
  • 1.8GHz-3.8GHz/ 2.2GHz-3.6GHz /2.2GHz-3.2GHz/ 3.1GHz /2.9GHz
Core Number
  • Up to 24C
  • Up to 24C
L3 Cache
  • Up to 36MB
  • Up to 36MB
CPU TDP
  • 35 W
  • 35 W
Chipset
  • H610E
  • H610E
BIOS
  • AMI EFI 256 Mbit
  • AMI EFI 256 Mbit
Memory
Technology
  • DDR5 4800 MHz
  • DDR5 4800 MHz
Socket
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
Graphics
Chipset
  • Intel® UHD Graphics 770
  • Intel® UHD Graphics 770
Graphic Engine
  • DirectX 12, OpenGL 4.5
    HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
    HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
  • DirectX 12, OpenGL 4.5
    HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
    HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
HDMI
  • 2
  • 2
Dual Display
  • HDMI + HDMI (DP support by project)
  • HDMI + HDMI (DP support by project)
Ethernet
LAN1
  • 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
  • 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
LAN2/LAN3/LAN4
  • 10/100/1000/2500 Mbps Intel i225-V GbE, support Wake On Lan
  • 10/100/1000/2500 Mbps Intel i225-V GbE, support Wake On Lan
Audio
Main System
  • Realtek ALC888S, High Definition Audio, Line-out, Mic-in
  • Realtek ALC888S, High Definition Audio, Line-out, Mic-in
I/O Interface
Serial Port
  • 4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control
  • 4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control
USB Interface
  • 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0
  • 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0
GPIO
  • 16-bit DIO (by optional cable)
  • 16-bit DIO (by optional cable)
Expansion
CAN Bus
  • 2 ports (by optional cable)
  • 2 ports (by optional cable)
Add-on Card Slot
  • 2 Slot PCI (by optional AMO-R040)
  • 2 Slot PCI (by optional AMO-R040)
M.2
  • 2
  • 2
Others
TPM
  • TPM 2.0 (by optional AMO-I029)
  • TPM 2.0 (by optional AMO-I029)
Watchdog timer
  • 255 levels timer interval, setup by software
  • 255 levels timer interval, setup by software
Storage
2.5" HDD/SSD
  • 2 x 2.5" SATAIII Drive bay (compatible with 9mm height)
  • 2 x 2.5" SATAIII Drive bay (compatible with 9mm height)
NVMe
  • 1 x PCIex2 (Share with M.2 2280 B key)
  • 1 x PCIex2 (Share with M.2 2280 B key)
Software Support
Microsoft Windows
  • Windows 10/11 IoT Enterprise LTSC
  • Windows 10/11 IoT Enterprise LTSC
Operating System
Ubuntu
  • V
  • V
Power
Power Type
  • AT / ATX
  • AT / ATX
Input Voltage
  • 9 ~ 36 VDC
  • 9 ~ 36 VDC
Mechanical
Construction
  • Aluminum housing
  • Aluminum housing
Mounting
  • Desk mounting
  • Desk mounting
Dimensions
  • 200 x 75 x 215 mm
  • 200 x 75 x 215 mm
Weight
  • 3.2 Kg
  • 3.2 Kg
Environment
Operational Temperature
  • 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
  • 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature
